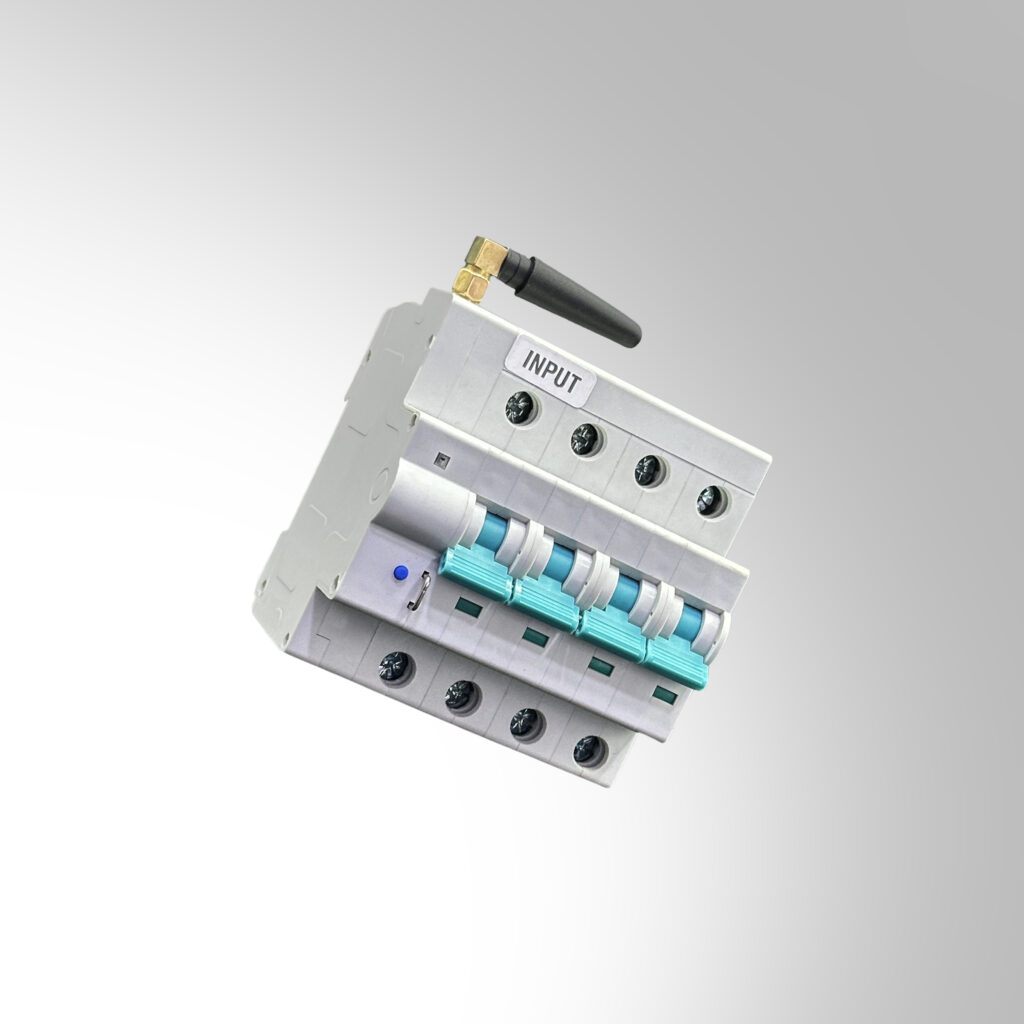

Smart WIFI MCB
Smart MCB 4 Pole
Description
Installing a Smart wifi MCB can seem pretty complicated at first but it is not. You can go to this video and see for yourself how easy it is. The video shows the installation of Smart wifi MCB and its configuration with our Smarden mobile app. The process is very easy, and you will see how little time it takes to complete work. As we’ve said earlier, Smart wifi MCB is a safe and secure option for your home.
It protects your appliances from short circuits and overloads by controlling them through your smartphones or voice assistants. And for this purpose, you don’t even need a “Smart MCB box” because your Smart wifi MCB itself will be a Smart Circuit Breaker! How cool is that? wifi MCB 63 amp will be a recommend pick of all due to its extra advancement technology and unique features.
Technical Specifications
- Load Capacity – 40A, 63A, 100A
- Poles: 4 Poles and Three phase MCB
- Communication: Wifi Based
- Communication Module: WiFi Module
- Works with: Mobile app or Cloud Platform
- Device Security: 128-bit AES encryption in Payload
- Phase line leakage current: steady-state current consumed per phase line ≤ 0.2mA
- Operating temperature: -25 ° C ~ +65 ° C
- Operating distance from Wi-Fi router: up to 30 meters* (depending upon router and its placement)
- Rated Operational Voltage: 415 V(2P/3P/3P+N/4P)
- Rated Frequency: 50/60 Hz for AC
- Service Short circuit capacity: 6KA
- Rated Short Circuit capacity: 6KA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4KV
- Degree of protection: IP20
- Protection level: IP20
- Suitability of Isolation: YES
- Dimensions: Three Phase (4 Pole) – 89x95x72 mm
- Communication Wi-Fi: Connects to 2.4 GHz, Wi-Fi 802.11 b/g/n
- Frequency (MHz): 865-868MHz
- Gain: 1 dBi
- Impedance (Ω): 50
- Connector: SMA- plug right angle
- VSWR : < 2.0
- Antenna Housing: Aluminum-commercial Grade
- Polarization: vertical
- Manual operations supported
Features
- Works Remotely: The device works remotely with the SmarDen Mobile application and it can be controlled from anywhere in the world. The user can control all the nodes individually from anywhere.
- Scheduling: The user can schedule any individual load connected to the devices i.e. lights, bulbs, fans, etc. to turn on/off at a specific time. Once the schedule is set the device will follow the instructions at that specific time. The user can also repeat the schedules to make it work throughout the week and at any point in time.
- Routines: The user can also create a Routine depending on the requirements. In a particular routine, the user can set multiple appliances to turn on/off at a specific time of the day. Once the routine is set the devices will attain their state at that point in time. For example, you can create a routine to turn on the fan and turn off the lights in your room at 9 AM in the morning.
- Auto-off timer: The user can also set auto-off timers for a specific appliance to turn off after a particular time. For example, you can set the auto-off timer to turn off the lights in 50 minutes.
- History: The user can also check the history of any individual appliance. The history report will tell the user about the switching details of that appliance. Therticular appliance. In the history details, the user will get to know about the time at which the appliance was turned on/off and it will also tell “who” controlled the appliance. For example, if you manually turned on the light at 9 AM, then in the history it will be updated as a manual off Action has been taken on lights at 9 AM, or if any of my family members controlled the device from the mobile app, you’ll get to know who controlled the device and at what time the action has been taken.
- Add Family Members: The prime user of the mobile application can add multiple family members in the app so that all the members of the family have complete access to all the devices present in their home.
- Running Time: The user will also be able to check the number of running hours of all the individual devices from the mobile application.
- Voice Control: All the devices can be controlled via Google Assistant and Amazon Alexa and you can also add Siri shortcuts to control the devices with Siri.
- Scenes: The user can also create a scene to make specific adjustments to the devices and with a single tap of a button the scene will be executed. For example, you can create a party scene in which you can turn on the TV, dim the lights, turn on the AC and make the volume of the soundbar 100%.
- Workflows: In the workflows, the user can create a workflow based on the sensor values. In the workflows, the user can control multiple appliances to turn on/off based on the sensor value. For example, you can create a workflow that will turn on the AC and turn off the LED lights automatically when the temperature of my living room is above 26° Celsius.
- Device Warranty Status: The user doesn’t need to worry about the warranty cards anymore. The warranty status of each device can be checked from the SmarDen mobile app itself.
Control via Smartphone
“MCB” with A Touch Of Smartness
Smart wifi MCBs are recommended as the practical evolution of regular MCBs. They are a safe and secure option for your home that prevents any mishaps from taking place in your absence. You don’t need a “smart MCB box” because your MCB itself will be a Smart Circuit Breaker!
Contactless Operation
Utility Packed Into One Device
Protect Your Home
Control Your Entire Home
Smart WIFI MCB know-hows
Where is home automation used?
Lighting control, HVAC, outdoor grass irrigation, kitchen appliances, and security systems are the most popular uses of home automation.
What is a smart WIFI circuit breaker?
A smart WIFI circuit breaker is an electronic gadget used to control the electricity flow before entering into your smart home devices and this smart WIFI MCB has remote control access and artificial intelligent electricity control. These smart wifi MCBs can be controlled from anywhere through a mobile application like SmarDen’s, which can also monitor and manage your electricity flow through smart WIFI MCB.
What is the use of smart WIFI MCB?
Smart WIFI MCBs are just an advancement of regular MCBs with the latest technology integrated into them. These smart WIFI circuit breakers can help in short circuit and voltage fluctuating protections. And can be monitored and controlled from anyplace though your smartphone application.
Are smart circuit breakers safe?
Thanks to today’s technology, smart circuit breakers/smart Wi-Fi MCBs are incredible electronic appliances discovered to control your electricity flow and can monitor all the actions from your smartphone. And these smart wifi MCBs are completely safe and unlike regular MCBs, they can be controlled through a phone and are way too advanced. We highly suggest you buy wifi MCB 63 amp for its high advancement.
What is MPCB?
Monitor Protection Circuit Breakers, These MPCBs are specially designed to monitor the voltage, electricity flow, short circuits, electricity breakage, power-offs through its advanced technologies in it.
What is the difference between a smart Wi-Fi MCB/breaker and a smart switch?
Both smart wifi MCB and smart switches are used to control electricity and circuits, however, both vary in many ways, for example smart wifi MCB is used to control the electricity from outside and monitor electricity flow, whereas smart switches are designed to control the particular circuit.
